Ventoxx Harmony
Five reasons to buy Ventoxx Double HRV
1. Saving on heating rooms. 2. Molds and fungi will leave your home forever. 3. Constant supply of fresh air and maintain optimal humidity level indoors. 4. Three-speed control of the decentralized heat recovery unit performance. 5. Protection against dust, insects, fluff and noise from the street.Distinguishing features of Ventoxx Harmony HRV from other Ventoxx™ decentralized heat recovery units
- The most silent decentralized heat recovery unit in the Ventoxx TM range.
- The most adaptive decentralized heat recovery unit: possibility of installation both with remote control and with Ventoxx Twist wall-mounted control.
- The small diameter of the mounting hole reduces the cost of installation.
- Can be installed as a standard version with a windbreak metal cover or in a budget version with the outer grid.
- Performance is up to 50 m3 per hour.
Technical data sheet of production Ventoxx, LLC (according to VO 1254/2014 EU of 11 July 2014)
| Description | Data | |||
| Supplier | Ventoxx, LLC | |||
| Model identifier | Ventoxx Harmony (RV-2 NG) | |||
| Specific energy consumption [kWh/m²a] | Cold | -69,997 | ||
| Average | А | -34,360 | ||
| Warm | -13,945 | |||
| Typology | BVU | |||
| Type of drive installed | 2 | |||
| Type of heat recovery system | Regenerative | |||
| Thermal efficiency of heat recovery [%] | 94 | |||
| Maximum flow rate [m³/h] | 50 | |||
| Electric power input (including control module) [W] | 2,7 | |||
| Sound power level [dB (А)] | 22 | |||
| Reference flow rate [m³ / h] | 32 | |||
| Reference pressure difference [Pa] | 0 | |||
| SPI [W/m³/h] | 0,09 | |||
| Control factor | 1 | |||
| Internal / external leakage rate [%] | Not indicated | |||
| Mixing rate [%] | Not indicated | |||
| Position of visual filter warning | Control | |||
| Regulated supply and exhaust grills in the facade | Not applicable | |||
| Internet address | www.ventoxx.ua | |||
| Airflow sensitivity [%] | 73,0 | |||
| Indoor and outdoor air tightness [m³/h] | 0 | |||
| Annual electricity consumption [kWh/(m²a)] | 1,16 | |||
| Annual heating saved [kWh/(m²a)] | Cold | 72,90 | ||
| Average | 37,27 | |||
| Warm | 16,85 | |||
The fresh air heat recovery unit ensures a constant air exchange in residential, educational buildings and office spaces without the active participation of users and with closed windows. Thanks to built-in filters, fresh air enters the room purified and exhaust air which is saturated with carbon dioxide is discharged outside.
Due to the heat storage in the ceramic heat exchanger of the fresh air heat recovery unit, fresh air enters the rooms heated even in the cold winter. Thus, it is possible to completely eliminate the airing with open windows, with no loss of heat, as well as limiting the entry of dust, carbon monoxide and noise from the street.
The minimum power consumption of 7,7 W per hour will have virtually no impact on utility bills. Simple and quick installation without dust and dirt allows you to equip any non-industrial room and provide people in it with fresh air without loss of heat.
A high-quality Austrian ceramic heat exchanger, due to its optimal thermal-physical properties and improved cell structure, provides heat recovery (return) efficiency of up to 94%. The ceramic heat exchanger does not undergo freezing and performs its functions without affecting the heat recovery efficiency, even at a temperature of -50°C. No condensation occurs.
Ventoxx decentralized heat recovery units can be operated by remote control or the Ventoxx Twist wall-mounted control unit (available separately). The devices are equipped with replaceable and washable G3 filters, which must be washed once a quarter and completely replaced every 2 years.
Advantages of the Ventoxx Harmony HRV
- Design solution of the inner cover.
- Light indication of operating modes on the cover.
- More ergonomic distribution of the incoming airflow along the walls.
- Reinforced noise insulation on the inside of the cover.
- Can be operated by remote control or with Twist wall-mounted control.
- Can be equipped with an outer grid or windbreak cover.
- Can be equipped with an additional sound insulation unit.

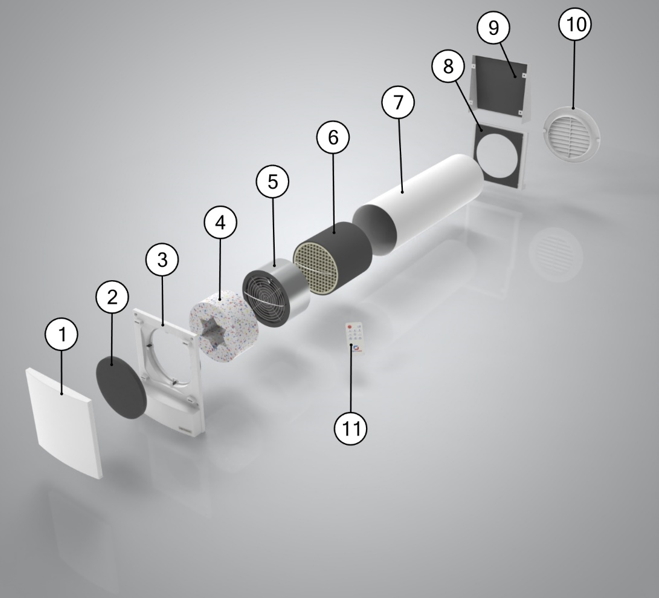

Ventoxx Harmony HRV consists of the following components
1 – movable part of the inner cover
2 – G3 class air filter
3 – a mounting plate with indication of current operating mode
4 – Ventoxx Star noise attenuation element *
5 – cartridge with a reversible fan
6 – ceramic heat exchanger in thermal insulation
7 – air duct
8 – a mounting plate of the outer metal cover **
9 – metal hood of the outer metal cover **
10 – back output diffuser(outer) grid **
11 – remote control.
* Optional component, not available in the standard complete set.
** Depending on the selected modification, there can be a complete set with the back output plastic diffuser grid instead of a metal cover.

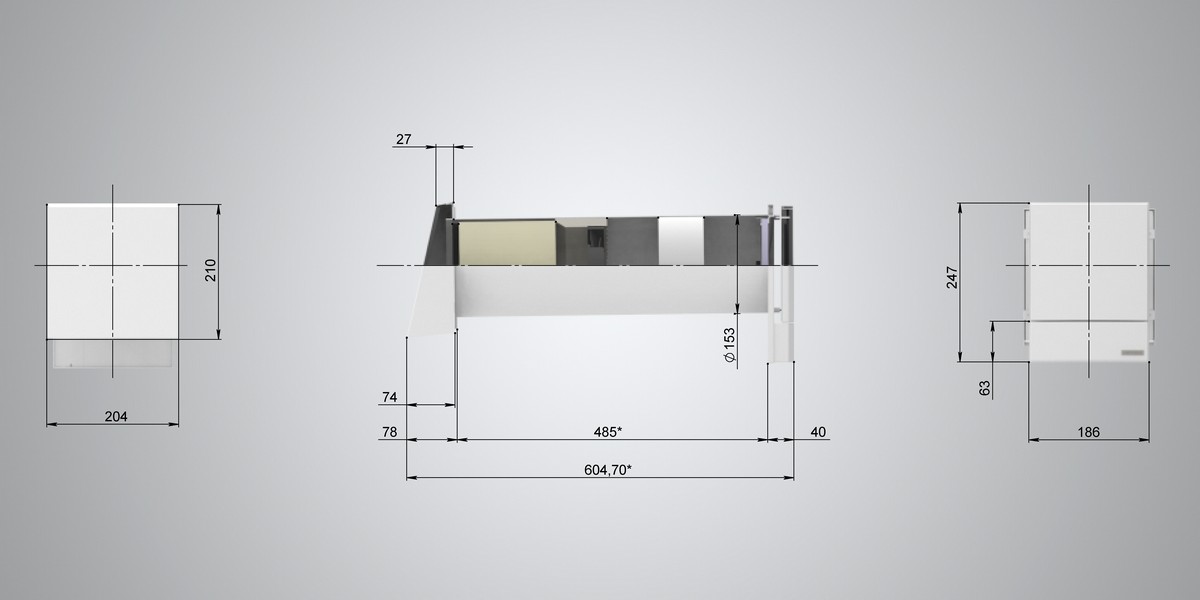

Product dimensions
Our client from Kharkiv equipped his appartment with the Ventoxx Harmony energy-efficient ventilation.
648 hrn.
Available
